The built-in electronics allows to use series PT500 load cells also in industrial environments with electrical noises (inverters, electrical actuators etc.).
The ruggedness, compactness and good linearity allow this load cell to be fit for general purpose use such as on closed loop control on presses, test machines, quality control, tile / marble machines, automatic assembling machines, printing machines, electro-medical equipment, vehicle devices, cranes, weighing devices, machine tools, machines working metal / rubber / plastics and paper etc.

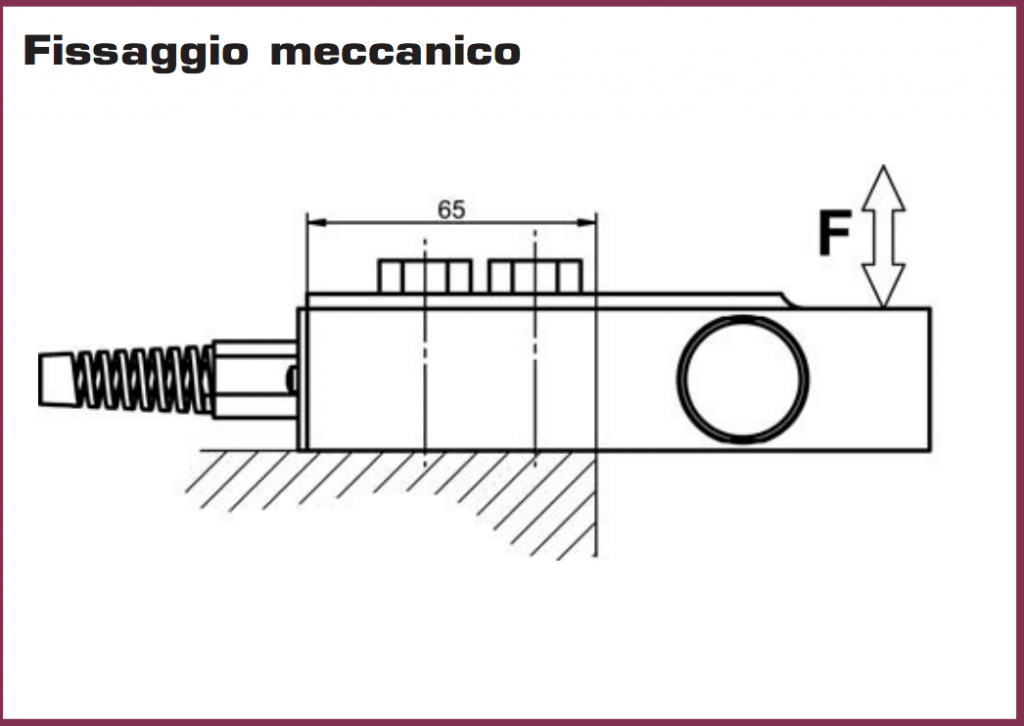

Series PT500 strain gauge load cells have a 4 active arms Wheatstone bridge and are rugged and accurate with the shear mechanical working principle.
Series PT500 can have an optional built-in electronics, CE/EMC certified with the following outputs (with zero and gain regulation):
Built-in electronics allow to use series PT500 also in electrically noised industrial environments.
Built-in electronics allows only positive voltage and current outputs that can be calibrated, with a tension and compression load cell force measurement: 0 KG matched to a central electrical output (i.e.: 0KG=2,25V or 0Kg= 4,75V or 0Kg=12mA) and then the tension / compression mechanical full scales can be matched to the minimum or maximum electrical values (i.e.: 0,5V=FS tension and 5V=FS compression; 4mA=FS compression and 20mA=FS tension etc.).
Series PT500, with 2mV/V typical not amplified output, has a built-in calibration circuit that allows an easy calibration with the external electronics (PLC, DAQ, panel meters etc.) without using a known load.
All load cells are provided with a final test calibration certificate.
Series PT500 has an IP65 environment protection against water, oil, powders, dirtyness etc.
| Fullscale | |
|---|---|
| Environmental protection | |
| Sensitivity | |
| Total error | |
| Repeatability error | |
| Temperature effect within 0°C | |
| Zero unbalance | 2% FS max |
| Wheatstone strain bridge impedance | 350 Ohm |
| Excitation accepted | |
| Overload | |
| Operating temperature | |
| Output signal type | |
| Digital output | |
| Material | |
| Analog output |
Celle di Carico NON AMPLIFICATE
(con uscita non condizionata, mV/V)
Celle di Carico AMPLIFICATE
(uscita amplificata in tensione 0-10V oppure 0-5V oppure 0 a ±10V oppure 0 a ±5V oppure amplificata in corrente 4/20mA)
Triple coassial cable
