The transducers of this product series are suited for traction / compression loads – with a measuring range from 0 ± 2.000 Kg – that can be supplied in:
They are high-precision, reliable at an affordable price, easy to install and for general use, in industrial automation applications
Measuring range (traction and compression): from 0 to ± 2.000 Kg FS.

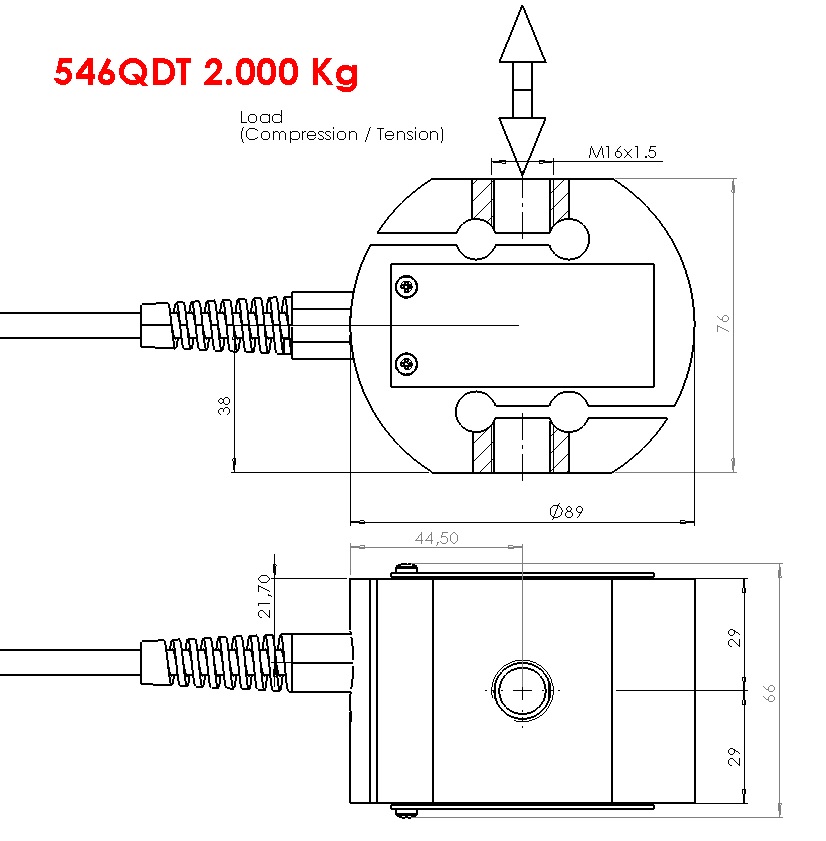

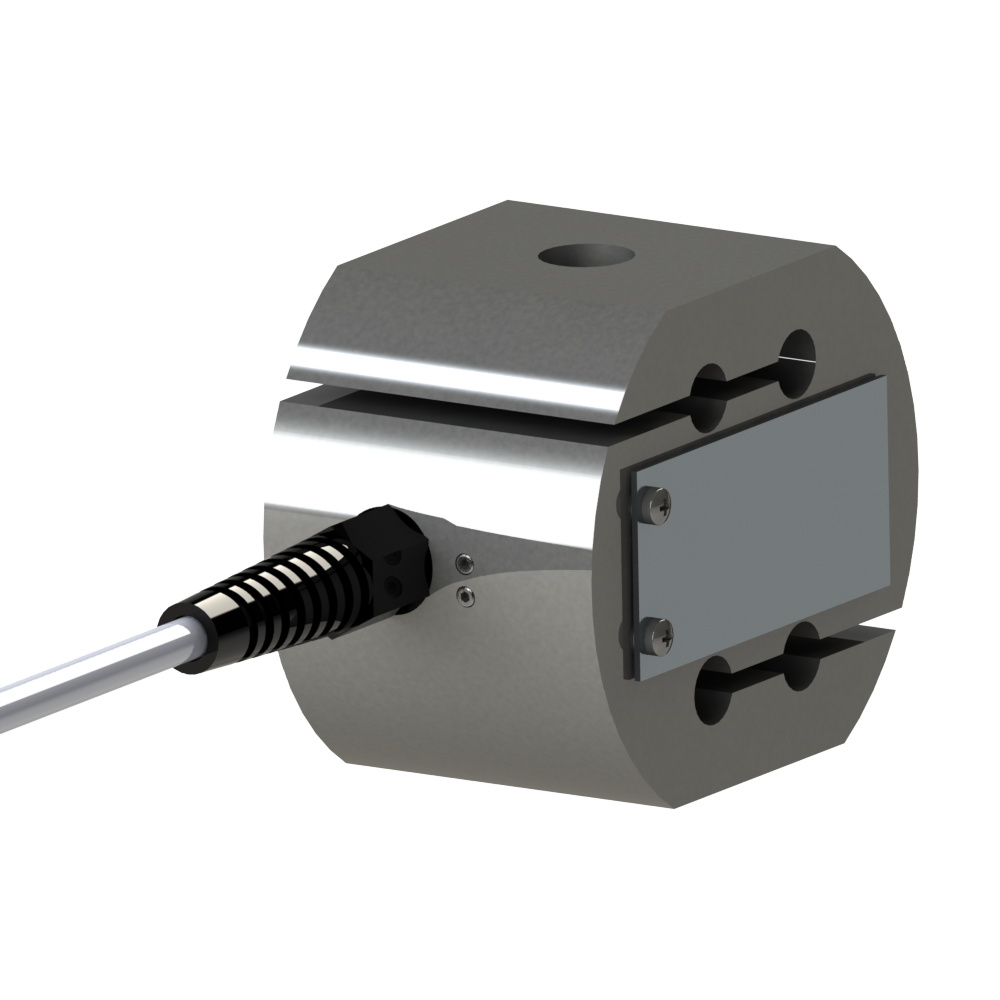

The application of the traction / compression load takes place through two co-axial threaded holes –– located in the center of the transducer’s upper and lower supporting surfaces, in such a way as to allow the direct coupling with the machine or with load adapters specifically for the application (for example with junctions or spherical adapters).
There is only one single strain gauge bridge inside the measuring body, to which an analog amplifier can be added, or a high-resolution digital acquisition interface, with programmable AD converters of 20 or 24 bit maximum resolution.
If the transducer is requested with integrated electronics, the following options are available:
The digital electronics can be easily configured, including by the Client, in such a way as to allow an easy utilization within the data network that is inside the machine. The use of the digital electronics with a Field Bus Module makes it possible to have an effortless connection to the intelligent measurement systems inside the IT infrastructure (in conformity with that indicated for Industry 4.0), with the advantage of disposing of a programmable high-resolution converter, that is directly built into the transducer, thus being able to have the maximum immunity to electrical disturbances and disposing of measurements already expressed in the mechanical units involved. There are also advanced measuring functions, that make it possible to set the sampling frequency, to apply a possible linearization for the conversion of the measurements into the mechanical units involved (32 characterization points that can be memorized in EEprom) and an auxiliary filter. Using a digital transducer moreover facilitates its interchangeability with other load cells, in order to use the “digital cell + display instrument” measurement chain on a broad spectrum of applications and measurement loads, without having to worry about the updating of the display calibration. This feature is greatly appreciated in portable applications or on-board machine installations, where in addition to high measuring precision also requires a high flexibility in use.
The main characteristics of the digital amplifiers are:
In addition to the aforementioned advantages of the digital electronics integrated into the transducer, you should also consider a greater simplicity in the layout of the electrical connections, which makes it possible to aggregate a considerable number of units on the same digital transmission line, moreover drawing advantages from the functionality of the intrinsic diagnostics in the bus of the chosen field.
|Protezione ambientale (EN 60529):|
|Temperature effect within 0°C|
|Bilanciamento dello zero|
≤ ± 2% FS
|Recommended power supply|
|Safe load limit|
|Ultimate load limit|
|Campo nominale di temperatura|
|Campo temperature di esercizio|
|Temperatura di stoccaggio|
|Materiale corpo di misura|
High-tensile, zinc-coated steel
|Coppia serraggio viti di fissaggio|
87 Nm, M12 x 1,5 classe vite 8.8 (1)
|Output signal type|
